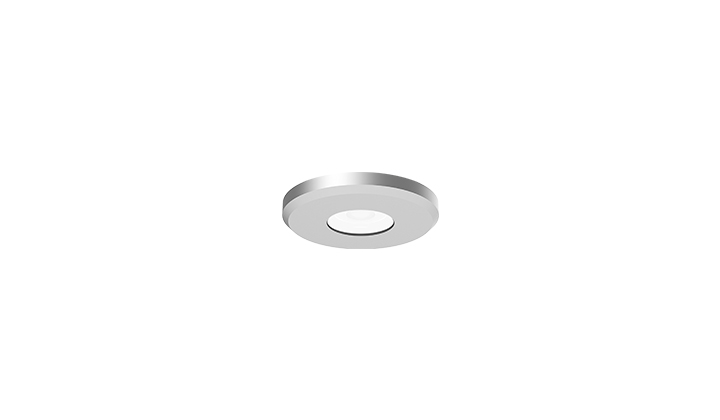

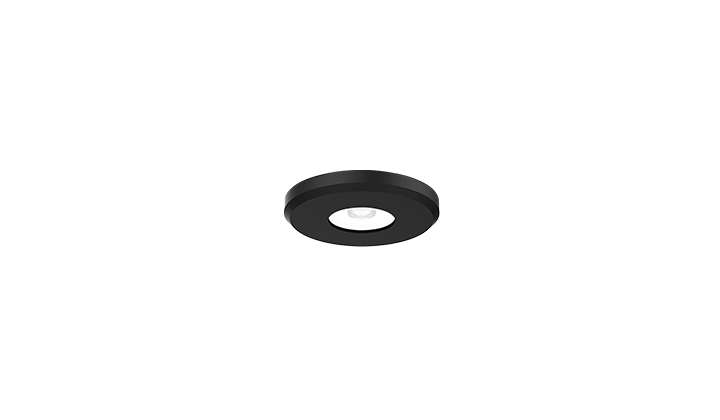

MINIFOCUS
  • Housing: Machining aluminum oxidized
  • Lens: Injection plastic
  • LED parts: High efficacy LED, non-replaceable
  • Chromaticity tolerance (initial MacAdam): 3 SDCM
  • Input Current: 350mA
  • Ta: -20~35°C
  • Lifetime: 50,000 hrs (L80, B20, Ta = 25°C, 12 hrs/day)
  • Degree of protection: IP43
  • Impact resistance: IK02
  • N.W. :50 g
  • Housing: Machining aluminum oxidized
  • Lens: Injection plastic
  • LED parts: High efficacy LED, non-replaceable
  • Chromaticity tolerance (initial MacAdam): 3 SDCM
  • Input Current: 350mA
  • Ta: -20~35°C
  • Lifetime: 50,000 hrs (L80, B20, Ta = 25°C, 12 hrs/day)
  • Degree of protection: IP43
  • Impact resistance: IK02
  • N.W. :50 g

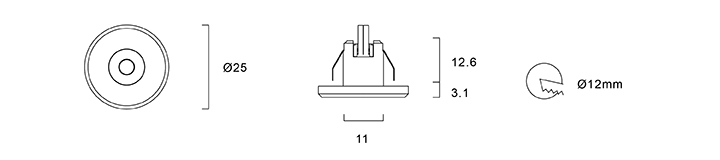

Dimensions:(mm)
Download
Supporting Power Supply And Control
